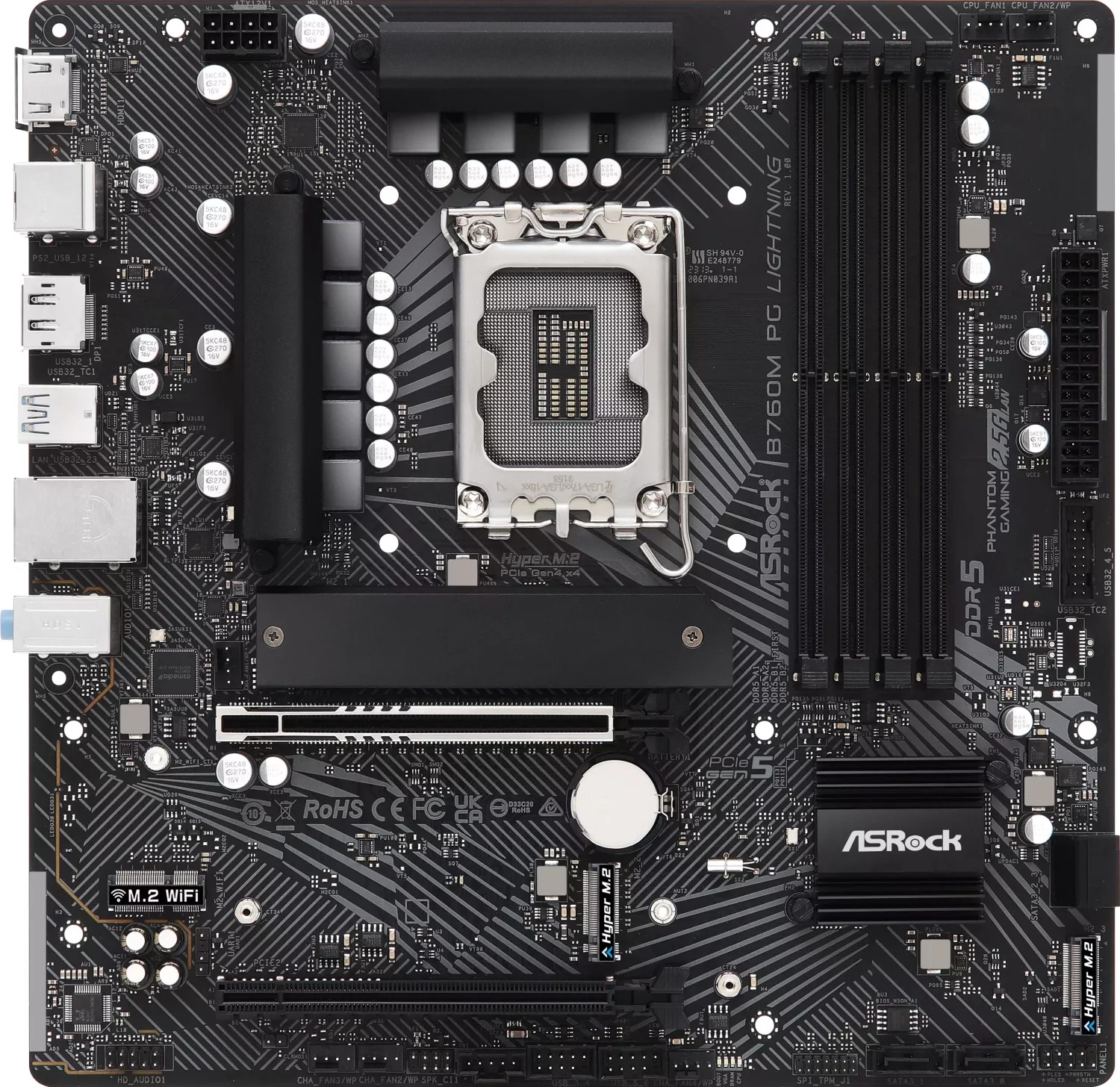

Produktinformationen "Asrock B760M PG Lightning"
| Herstellernummer | 90-MXBM20-A0UAYZ | ||
| Sockel | Intel 1700 | ||
| RAM-Slots | 4x DDR5, max. 192GB | ||
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x4 | ||
| interne Anschlüsse | 1x USB 3.0 Header, 2x USB 2.0 Header | ||
| Speicher Slots | 3x M.2, 4x SATA | ||

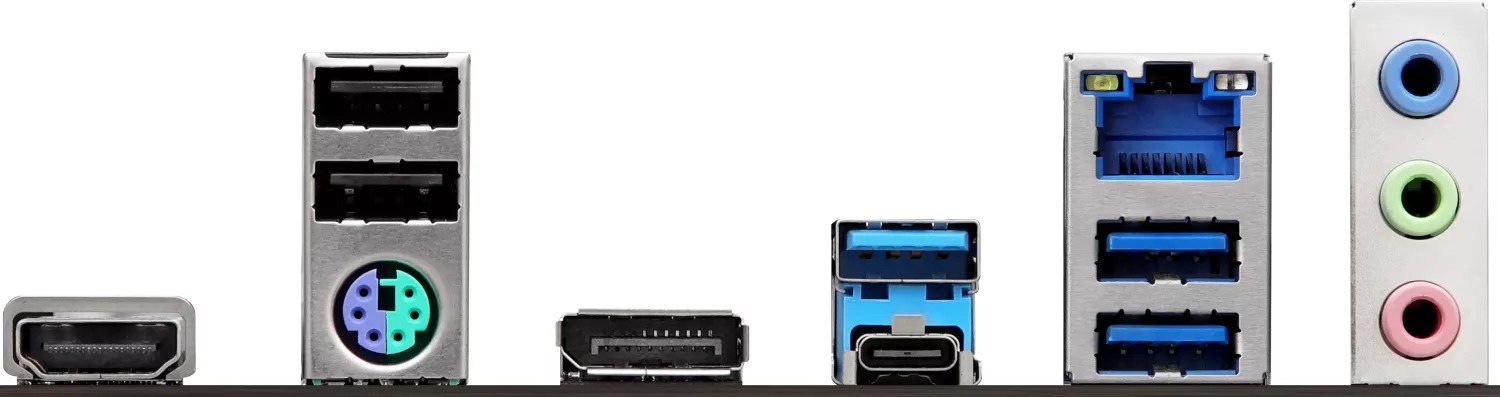

| externe Anschlüsse | 1x HDMI, 1x DisplayPort, 1x USB-C 3.0, 3x USB 3.0, 2x USB 2.0, 1x 2,5GB LAN, 3x Klinke, 1x PS/2 Combo | ||
| Lüfteranschlüsse | 1x 4-Pin CPU, 1x Pumpe, 4x 4-Pin Lüfter | ||
| RGB-Anschlüsse | nicht vorhanden | ||
| Audio | Realtek ALC897 | ||
| Netzwerk | Realtek 2,5GB LAN | ||
