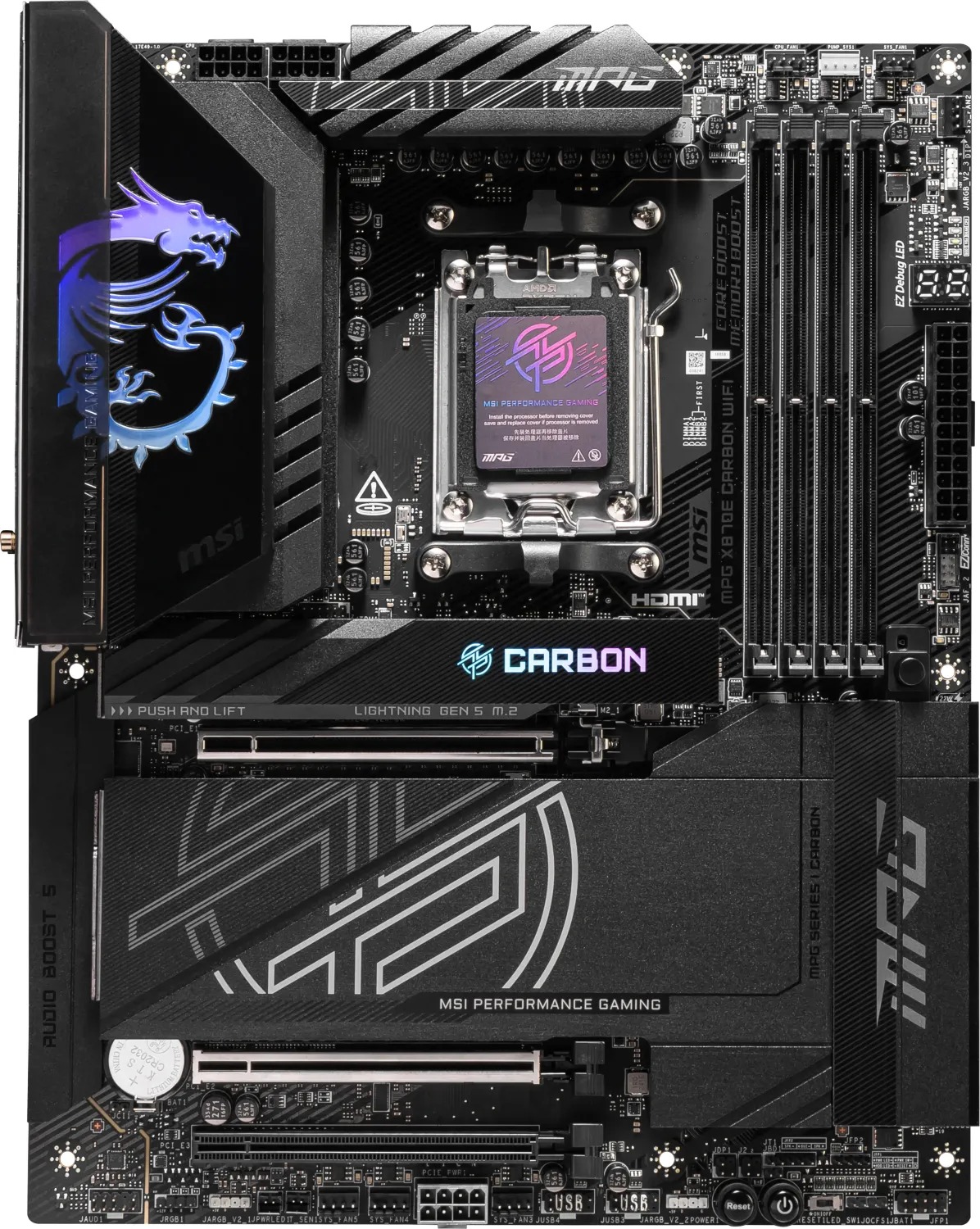

Produktinformationen "MSI X870E Carbon WiFi"
| Herstellernummer | 7E49-001R |
| Sockel | AM5 |
| RAM-Slots | 4x DDR5, max. 256GB |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 5.0 x4, 1x PCIe 4.0 x4 |
| interne Anschlüsse | 1x USB4 Header, 2x USB 3.0 Header, 2x USB 2.0 Header |
| Speicher Slots | 4x M.2, 4x SATA |

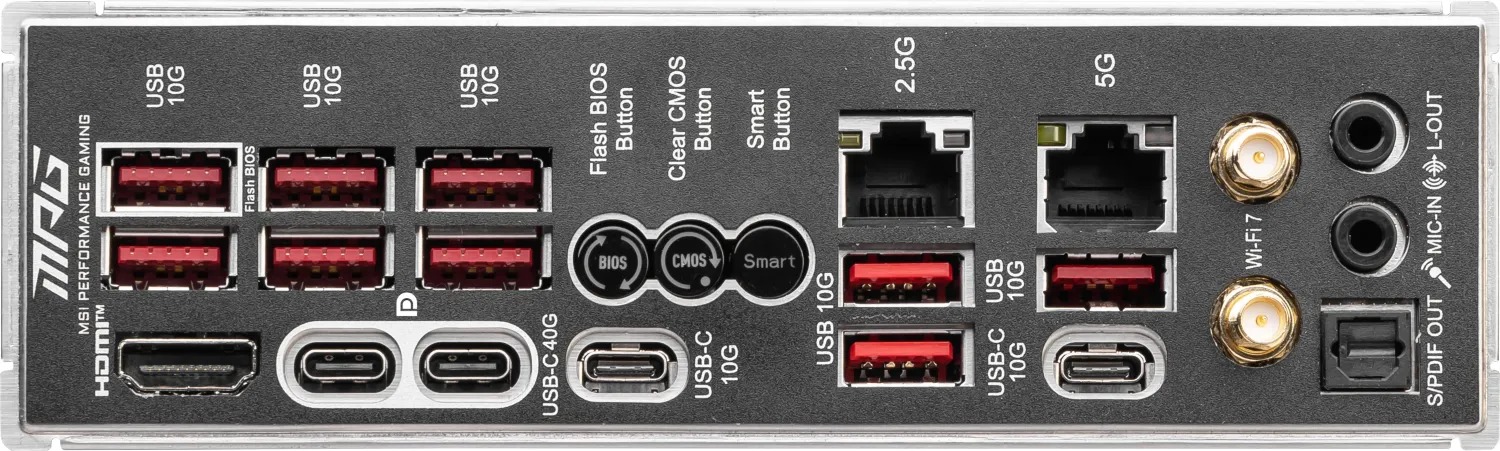

| externe Anschlüsse | 1x HDMI, 2x USB4 mit DisplayPort (40Gb/s), 2x USB-C 3.1 (10Gb/s), 9x USB-A 3.1 (10Gb/s), 2x LAN, 2x Klinke, 1x Toslink, 2x WLAN Antennenanschluss |
| Lüfteranschlüsse | 1x 4-Pin CPU, 1x Pumpe, 5x 4-Pin Lüfter |
| RGB-Anschlüsse | 3x 3-Pin aRGB, 1x 4-Pin RGB |
| Audio | Realtek ALC4080 |
| Netzwerk | 1x Realtek 5GB LAN, 1x Realtek 2,5GB LAN + Wi-Fi 7 + Bluetooth 5.4 |
